Gauges - VDO ViewLine Ivory Gauges
:: VDO VIEWLINE IVORY GAUGES |
|
|
VDO VIEWLINE IVORY GAUGES DESCRIPTION
ViewLine can be customized with your choice of 9 different bezels or be mounted from behind the dash to be flush.
ViewLine instruments feature a long list of standards such as LED illumination, built-in LED warning lights, short circuit protection, IP67 water resistance and anti-corrosion materials.
|
ViewLine Onyx 5 Instrument Kit |
|
|
Electronic Speedometer with Warning Lights & Autocalibration
Speedometers feature 1-button auto calibration, user defined speed warning, left and right turn signals, emergency brake warning and high-beam indicator.
LCD features odometer, trip-odometer, voltage and clock. Accepts signal inputs from Hall Effect and inductive sender and most electronic controlled transmission outputs.
Connection |
Tyco connector |
Voltage |
12-24V |
Diameter (Metric) |
85mm |
Input Type |
analog |
Max Range Outer Scale |
120 MPH |
Diameter |
3 3/8 in |
|
|
|
|

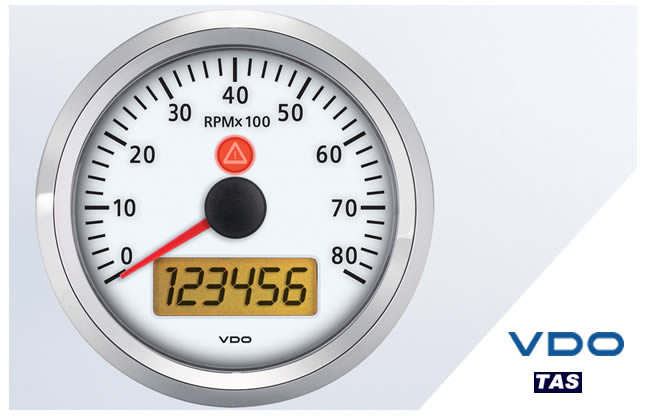

ViewLine Ivory 8,000 RPM 3 3/8" (85mm) Tachometer
Input Type |
analog |
Connection |
Tyco connector (included) |
Mounting Hardware |
Spin-Lok™ |
Voltage |
12-24V |
Equiv. Bulk PN# |
A2C53194887-B |
Diameter (Metric) |
85mm |
Max Range Outer Scale |
8000 RPM |
Diameter |
3 3/8 in |
|
|
|
|
|

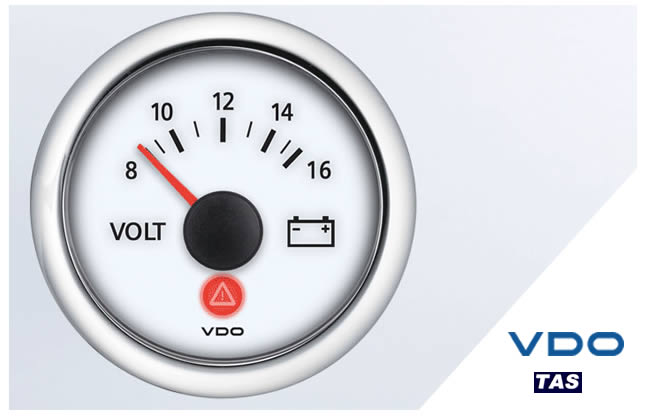

ViewLine Ivory 12V Voltmeter
Input Type |
analog |
Diameter |
2 1/16 in |
Connection |
Tyco connector (incl) |
Mounting Hardware |
Spin-Lok™ |
Voltage |
12V |
Equiv. Bulk PN# |
A2C53191768-B |
Diameter (Metric) |
52mm |
Max Range Outer Scale |
16V |
|
|
|
|

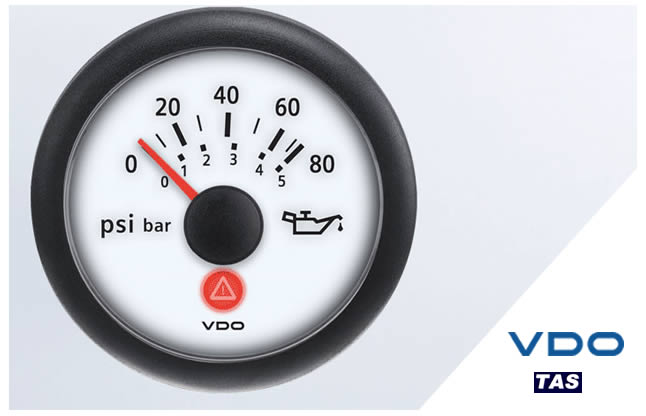

ViewLine Ivory 80 PSI/5 bar Gauge 12/24V
Connection |
Tyco connector (included) |
Mounting Hardware |
Spin-Lok™ |
Diameter (Metric) |
52mm |
Max Range Outer Scale |
80 PSI |
Diameter |
2 1/16 in |
Input Type |
analog |
Voltage |
12-24V |
Dial Scale |
Dual |
|
|

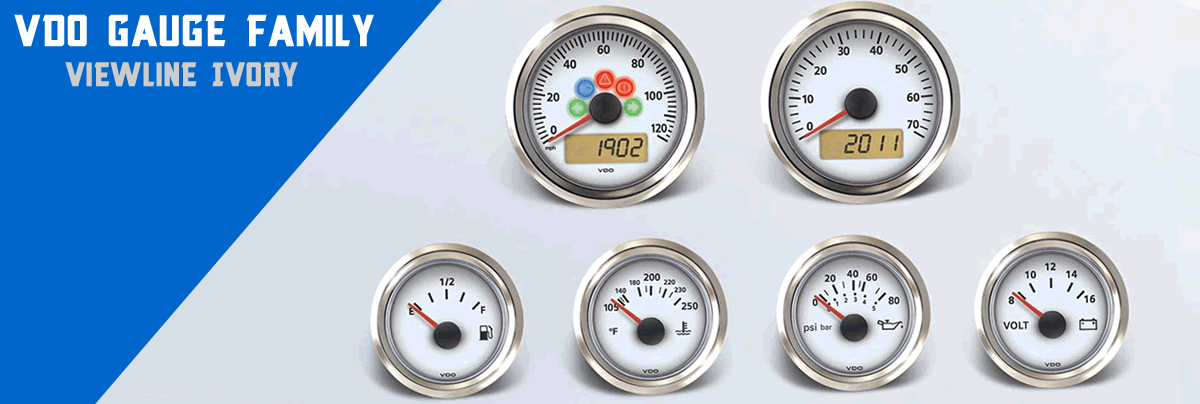

Related VDO Gauges Family
|
|
|
|
