SWITCHES AND SENDERS
Our sensors for instrumentation enable the monitoring of important data for reliable vehicle operation and long service life. Crucial readings include information on pressure, temperature and rpm, as well as speed and fuel level. Vehicle safety may be impacted and serious engine damage could occur if defined thresholds are not met or are exceeded.
|
| |
|
|
 |
|

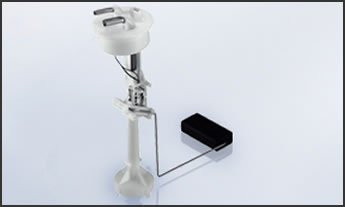

Lever-Type Senders
Lever-type senders are used to measure the fuel level in connection with an electrical display unit. Some senders are grounded. Senders without grounding have a separate ground connection. |
| |
|
|
 |
|

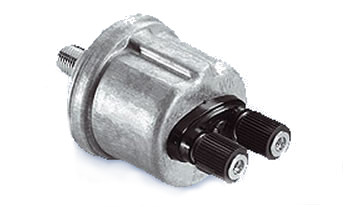

Pressure Senders
Pressure senders are used to measure gas or fluid pressure in connection with an electrical display unit. Some senders are grounded. Senders without grounding have a separate ground connection.
Pressure senders can also be equipped with a warning contact to signal the reaching of a pressure level limit. |
| |
|
|
 |
|

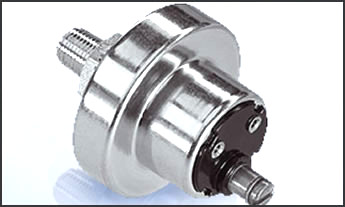

Pressure Switches
Pressure switches are used to monitor the pressure of gases and fluids by making contact when a pre-defined limiting value is exceeded or not reached. Some switches are grounded. Switches without grounding have a separate ground connection. |
| |
|
|
 |
|

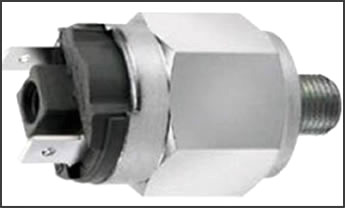

Adjustable Pressure Switch
Medium: Air or Liquid
Max Pressure: 1.0Mpa
Adjustable Range: 1.0bar ~ 10.0bar
Pressure Setpoint in Factory: 2.0Bar
Temperature: -5C ~ +60C
(If more than 60C, please connect with capillary)
Work Voltage: N.O 220V/AC N.C 48V/AC/DC
Max Current: 500mA
Max Power: N.O 100VA N.C 24VA
Protect Grade: IP54 |
| |
|
|
 |
|

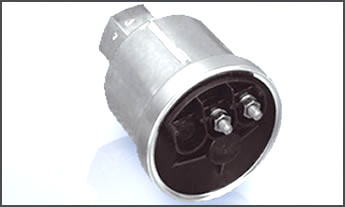

RPM and Speed Senders
RPM and speed senders are used to measure and display the RPM and speed of engines and gears in connection with an electrical display unit. Some senders are grounded. Senders without grounding have a separate ground connection. |
| |
|
|
 |
|

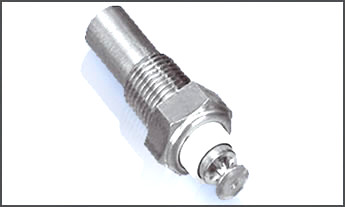

Temperature Senders
Temperature senders are used to measure different media in connection with an electrical display unit. Some senders are grounded. Senders without grounding have a separate ground connection.
Temperature senders can also be equipped with a warning contact to signal the reaching of a temperature level limit.
|
| |
|
|
 |
|

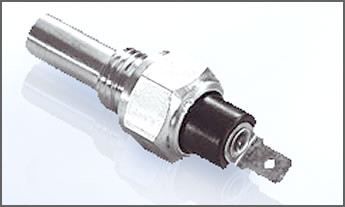

Temperature Switches
Temperature switches are used to monitor the temperature of different media by making contact when a pre-defined limiting value is exceeded or not reached. Some switches are grounded. Switches without grounding have a separate ground connection.
The temperature switch types in the product range include:
- Type A: 1.2–3 W, common ground
- Type B: 100/120 W, insulated return |
| |
|
|
 |
|

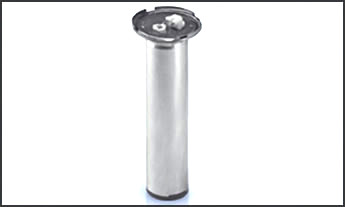

Tubular-Type Senders
Tubular-type senders are used to measure the fuel level in connection with an electrical display unit. Some senders are grounded. Senders without grounding have a separate ground connection.
Tubular-type senders can also be equipped with a warning contact to signal the reaching of a fuel level limit (reserve) or for continual measuring.
|
| |
|
|
 |
|

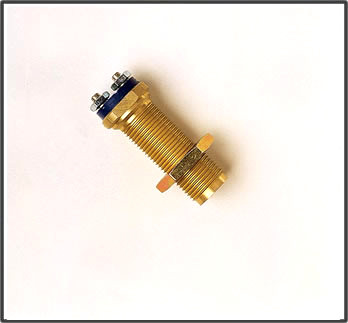

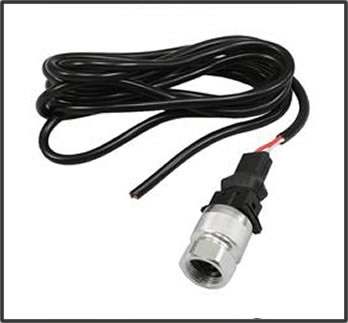

Sending Unit, Electric Speedometer
| Part Type |
: |
Gauge Sending Units |
| Product Line
|
: |
VDO Speedometer Senders |
| Sending Unit |
: |
Electrical |
| Sending Unit Thread Size |
: |
7/8-18 in. |
| Thread Adapter Fittings Included |
: |
Yes |
| Quantity |
: |
Sold individually. |
| Notes
|
: |
Designed for most GM and Chrysler transmissions with speedometer cable output. Not designed for O.E.M. speedometers. |
|
| |
|
|
 |
|

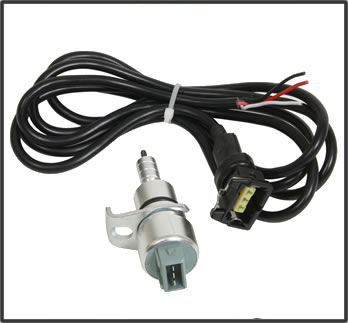

Sending Unit, Electric Speedometer, Ford
| Part Type |
: |
Gauge Sending Units |
| Product Line
|
: |
VDO Speedometer Senders |
| Sending Unit |
: |
Electrical |
| Thread Adapter Fittings Included |
: |
No |
| Quantity |
: |
Sold individually. |
| Notes
|
: |
Designed for most Ford transmissions with plug-in style speedometer cable output. Not designed for O.E.M. speedometers. |
|
| |
|
|
 |
|
Sending Unit, Electric Speedometer
| Part Type |
: |
Gauge Sending Units |
| Product Line
|
: |
VDO Speedometer Senders |
| Sending Unit |
: |
Inductive, Magnetic |
| Thread Adapter Fittings Included |
: |
No |
| Quantity |
: |
Sold individually. |
| Notes
|
: |
Not designed for O.E.M. speedometers. |
VDO produces senders that are compatible with its programmable speedometers for most popular domestic applications. They even offer special senders for cruise control applications with a through-drive. |
| |
|
|
 |
|

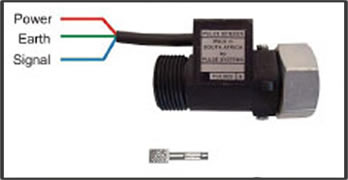

Plastic Thread Gearbox Speed Sensor
Operating Voltage: 5 to 30DC
Maximum Voltage: 35 DC
Thread size: M22 x 1.5
Cable length: 5 m |
| |
|
|
 |
|

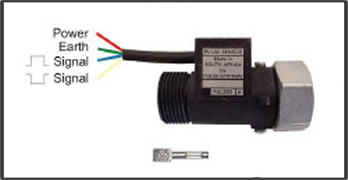

Plastic Thread - Double Pulse Gearbox Speed Sensor
Pulses per revolution : 8 x 2
Operating Voltage: 5 to 30 DC
Maximum Voltage: 35 DC
Thread size: M22 x 1.5
Cable length: 5 m |
| |
|
|
 |
|

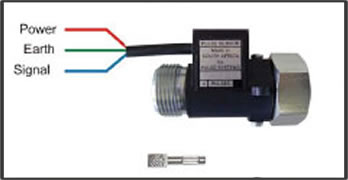

Metal Thread Gearbox Speed Sensor
Operating Voltage: 5 to 30 DC
Maximum Voltage: 35 DC
Thread size: M22 x 1.5
Cable length : 5 m |
| |
|
|
 |
|

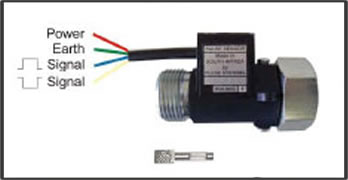

Metal Thread - Double Pulse Gearbox Speed Sensor
Pulses per revolution: 8 x 2
Operating Voltage: 5 to 30 DC
Maximum Voltage: 35 DC
Thread size: M22 x 1.5
Cable length: 5 m |
| |
|
|
 |
|

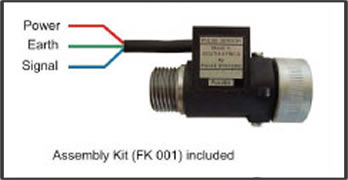

Opel / Ford / Uno Gearbox Speed Sensor
Operating Voltage: 5 to 30 DC
Maximum Voltage: 35 DC
Cable length: 4 m |
| |
|
|
 |
|

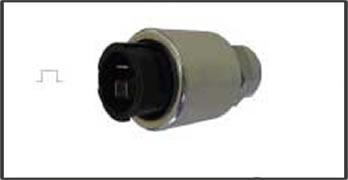

3 Pin - Single Pulse
Pulses per revolution: 8
Operating Voltage: 5 to 24 DC
Maximum Voltage: 35 DC
Thread size: 7/8" x 18 |
| |
|
|
 |
|

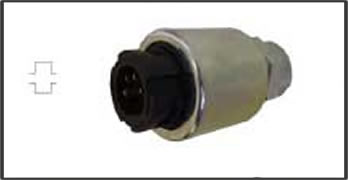

4 Pin - Double Pulse
Pulses per revolution: 8 x 2
Operating Voltage: 5 to 24 DC
Maximum Voltage: 35 DC
Thread size: 7/8" x 18
Switches for all needs supplied.
Plus a full range of sensors for all applications. |
