General Purpose Pressure Gauges |
 |
Industrial Pressure Gauges
GENERAL PURPOSE INDUSTRIAL GAUGE
For general demanding
industrial applications like hydraulic, mining, shipping and machine
building industry. Glycerine fillable.
Suitable for media such as air, water, oil & gases that
do not attack copper alloy or stainless steel parts or will
obstruct the pressure system. Typical applications will
be in the hydraulic, pneumatic, refrigeration, steam,
chemical and food and beverage industry.
|
Heavy Duty Process Industrial Gauges |
 |
Process Industrial gauges
PROCESS GAUGES are a Heavy duty gauge intended for the process industry such as the chemical, petro-chemical, energy, oil & gas and the food and beverage industry. Glycerine fillable.
Suitable for media such as air, water, oil & gases that
do not attack copper alloy or stainless steel parts or will
obstruct the pressure system. Typical applications will
be in the hydraulic, pneumatic, refrigeration, steam,
chemical and food and beverage industry.
|
Low Pressure Capsule Gauges |
 |
Capsule Gauges - Low Pressure: Industrial Gauges
Low pressure capsule intended for measuring
low pressure in applications such as the medical, laboratory, vacuum
and filter monitoring etc. Dry media only.
Suitable for measuring low pressure / vacuum in
gaseous, non-aggressive dry media that does not
attack copper alloy or stainless steel parts or will
obstruct the pressure system. Typical applications will
be in the medical, laboratory, vacuum and filter
monitoring industry.
|
Pressure Measurement Refrigeration Gauges |
 |
Pressure Measurement Refrigeration Industrial Gauges
REFRIGERATION PRESSURE GAUGES are Intended for refrigeration
and air-conditioning industry for media such as Freon and Ammonia.
Glycerine Fillable.
Suitable for refrigeration media such as freon and ammonia.
Typical applications will be in the refrigeration and airconditioning industry.
|
DIAPHRAGM OPERATED PRESSURE GAUGES |
 |
DIAPHRAGM OPERATED PRESSURE GAUGES - Industrial Gauges
Over pressure safe gauge for low pressure crystallising or polluting media in the range
0-4, 6, 10, 16, 25, 40...2500kPa. Industrial, mining and process industry.
Suitable for aggressive gaseous and liquid media under
extreme conditions. Ddiaphragm gauges are suitable
for viscous, crystallising or polluting media. The design
ensures resistance to vibration and protection against
over pressures.
|
TESTING PRESSURE GAUGES |
 |
TEST PRESSURE GAUGES- Industrial Gauges
TEST PRESSURE GAUGES - Precision test pressure gauges are intended for reliable, accurate measurement in the pressure testing and industrial gauge calibration industry.
Type 43X.56 Industrial Gauges offer all stainless steel construction and a high over pressure safety to 600 PSI or 1500 PSI. This Industrial Gauge is ideal for applications involving viscous and crystallizing media in a harsh environment
such as pulp & paper processing, chemical, petrochemical, and in water and sewage treatment plants.
|
TYRE PRESSURE GAUGES |
 |
TYRE PRESSURE GAUGE - Industrial Gauges
TYRE PRESSURE GAUGES: Robust, accurate tyre pressure gauge,
intended for the mining and industrial automotive industry.
Glycerine fillable.
Our Tyre Pressure Gauges are For checking tyre pressures when having to deflate or inflate tyres without having a tyre inflation gun with built in gauge
Suitable for inspection of tyre air pressure in the automotive and industrial environment.
|
ELECTRICAL CONTACT PRESSURE GAUGES |
 |
ELECTRICAL CONTACT PRESSURE Industrial Gauge
ELECTRICAL CONTACT PRESSURE GAUGES: With external dome
mounted snap action magnetic contacts are intended for the control
and regulation of industrial processes where switching of electrical
circuits are required for the industrial, mining and process industry.
Suitable for media such as air, water, oil & gases that do
not attack copper alloy or stainless steel parts or will
obstruct the pressure system. Typical applications will be
for the control and regulation of industrial processes
where switching of electrical circuits are required.
Externally adjustable, single or double contacts, can be
fitted to a SA Gauge pressure gauge to make the gauge
suitable to activate or deactivate electrical devices.
Contact can make or break in an upward or downward
pressure cycle.
|
LOCOMOTIVE PRESSURE GAUGES |
 |
LOCOMOTIVE PRESSURE Industrial Gauges

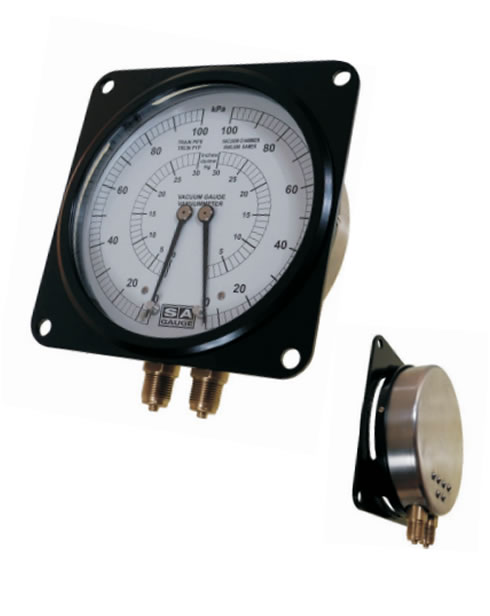

LOCOMOTIVE PRESSURE GAUGE, 100mm (4") ROUND Robust duplex gauge designed for rolling stock in the railway or
industrial locomotive industry.
Specifically designed duplex gauge for diesel / steam
railway and industrial locomotive use. Illumination slots
behind the bezel or flange facilitates easy reading in
dim environments. Removable front flange available
with or without illumination slots.
|
MINING PRESSURE GAUGES |
 |
MINING PRESSURE Industrial Gauges
Staple lock plug fitting gauge is
intended for mining equipment and plants where hydraulic support is
required. Glycerine fillable.
For mining equipment and plants where hydraulic support is required.
- 50, 63mm dial
- S/steel case and crimped bezel
- Brass wetted parts
- Staple lock plug connection
- 0...60MPa, bar, psi etc.
- Accuracy 1.6% F.S.
|
LOCOMOTIVE PRESSURE GAUGES |
 |
LOCOMOTIVE PRESSURE Industrial Gauges
Safety pattern gauges with solid front
baffle wall and blow out back for safe, immediate pressure relief.
Intended for the industrial, mining and process industry.
Safety pressure gauges, with solid front baffle wall, designed with operational safety requirements in mind.
Suitable for media such as air, water, oil & gases that
do not attack copper alloy or stainless steel parts or will
obstruct the pressure system. Typical applications will
be in the chemical, petrochemical, mining, on and
offshore process industry.
|
DUPLEX PRESSURE GAUGES |
 |
DUPLEX PRESSURE Industrial Gauges
DUPLEX PRESSURE GAUGES Intended for the display of two
separate input pressures on the same gauge for comparison purposes
in the general industrial, mining and process industry.
Suitable for the measurement and indication of two
simultaneous or individually applied pressures.
Intended for media such as air, water, oil & gases that
do not attack copper alloy or stainless steel parts or will
obstruct the pressure system.
|
PRECISION DIGITAL PRESSURE GAUGES |
 |
PRECISION DIGITAL PRESSURE Industrial Gauges
Precision digital gauges are intended for calibration and laboratory use where repeated, accurate pressure readings are required.
High accuracy digital gauges, suitable for media such as air, water, oil & gases that do not attack stainless steel parts or will obstruct the pressure system. Typical
applications will be in the general industrial, petroleum, chemical and laboratory industry.
|
DIGITAL PRESSURE GAUGES |
 |
DIGITAL PRESSURE Industrial Gauges
DIGITAL PRESSURE GAUGES DPG502 are a digital pressure gauges with an accuracy of 0.2% of full scale. it features a max/peak
pressure memory function. General purpose digital gauge intended for industrial, hydraulic, mining and process industry.
General purpose digital gauge, suitable for media such as air, water, oil & gases that do not attack stainless steel parts or will obstruct the pressure system. Typical
applications will be in the and general industrial hydraulic industry.
|

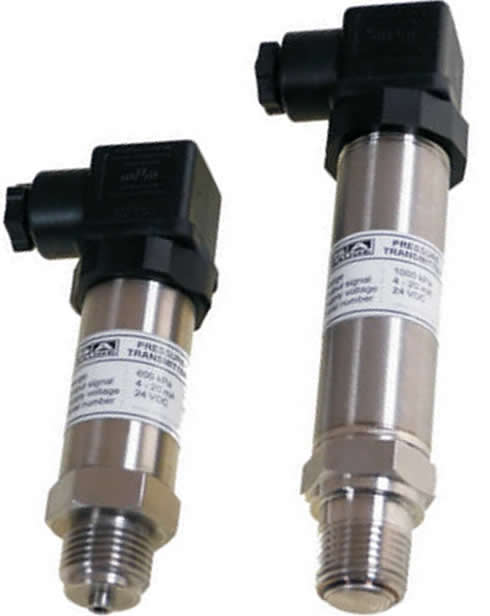

PRESSURE TRANSMITTER GAUGES |
 |
PRESSURE TRANSMITTER Industrial Gauges
General purpose pressure transmitters
are intended for the general industry such as hydraulic, pneumatic, mining, chemical, petro-chemical, shipping, machine buliding etc.
Suitable for the majority of general industrial control applications such as hydraulics, pneumatics, pharmaceutical and food & beverage.
|
Temperature Industrial Gauges |
BIMETAL THERMOMETER TEMPERATURE GAUGES |
 |
Bimetal Industrial Thermometer Temperature Gauges
Versatile bimetal thermometer intended
for the chemical, petro-chemical, energy, oil & gas and the food & beverage industry. For installation in pipes, vessels, plant, machinery etc.
Suitable for media such as air, water, oil, gas, and chemicals that will not attack stainless steel 316. Typical applications will be in a general industrial
heating, air- conditioning, food, petroleum, and chemical industry.
|
GAS ACTUATED THERMOMETER GAUGES |
 |
Gas Actuated thermometer industrial gauges
Heavy duty nitrogen actuated thermometer intended for local or remote reading in the chemical, petro-chemical, energy, oil & gas and the food & beverage industry. Glycerine fillable.
Suitable for media such as air, water, oil, gas, and chemicals that will not attack stainless steel parts. Typical applications will be in a general industrial heating, air- conditioning, food, petroleum, and chemical industry. Vibration resistant.
|
VAPOUR EXPANSION THERMOMETER GAUGES |
 |
Vapout Expansion Thermometer Industrial Gauges
VAPOUR EXPANSION THERMOMETER
Heavy duty thermometer intended for the demanding industrial automotive industry, such as for the portable air compressors / generators and earthmoving equipment
industry.
Suitable for media such as air, water, oil, gas, and chemicals that will not attack brass parts. Typical applications will be in demanding automotive, portable
air compressors / generators and earth moving equipment where distance reading is required. Vibration resistant.
|
BIMETAL THERMOMETER GAUGES |
 |
Bimetal Thermometer Industrial Gauges
BIMETAL THERMOMETER - Economically priced thermometer
intended for the general heating and cooling industry. For installation in air-conditioning, solar power and hot water boiler systems.
Suitable for general heating and cooling industry. Typical applications will be in a general industrial heating and air-conditioning industry. Also suitable for solar power systems and hot water boiler installations.
|
|
|
Industrial Temperature Gauges |
 |

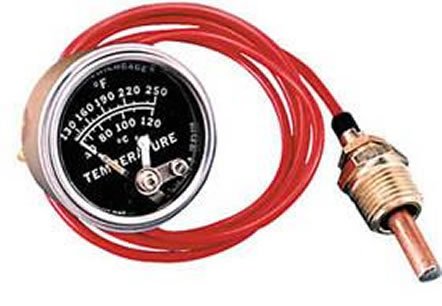

20T/25T Mechanical Temperature Industrial Gauges
The 20 Series (2 inch/51 mm dial) and the 25 Series (2-1/2 inch/64 mm dial) Swichgauge models are diaphragm-actuated, temperature-indicating gauges with built-in electrical switches for tripping alarms and/or shut-down devices.
Ranges are available from 32°-120°F (0°-45°C) through 300°-440°F (160°-220°C).
The gauge mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break- resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.
These vapor-actuated gauges feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gauge reading.
For series 20T and 25T, the gauge pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgauge case. They have a self-cleaning motion to enhance electrical continuity.
- Combination Indicating gauge and Limit Switch
- Critical/High Temperature Limit Switch Is Visible and Adjustable (Most Models)
- Switch Can Activate Alarms and/or Shut Down Equipment
- Contact Grounds Through Case
|
| |

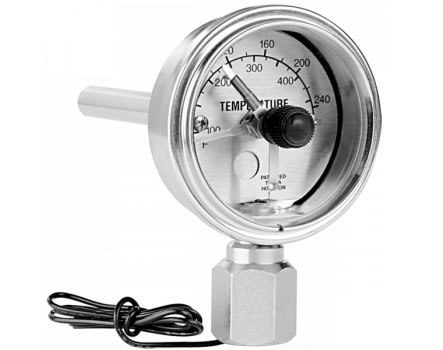

SDB Series Mechanical Temperature Industrial Gauges |
 |
The SDB Series are direct-mounting temperature devices. They provide an accurate direct-reading gauge with an adjustable limit switch to activate alarms and/or shutdown. A knob on front of the instrument allows you to adjust the limit switch trip point. Pointer movement is actuated by a bi-metallic sensing element.
Models SDB500, SDB501 and SDB500EX have a temperature range of 100° to 500°F (40° to 260°C). SDB500EX enclosure is explosion-proof and CSA listed for Class I, Group C and D hazardous locations.
The SDB1000 has a temperature range of 200° to 1000°F (100° to 500°C).
The most common use of the SDB Series is to monitor gas compressor temperatures. Engine exhaust temperature can also be monitored to indicate overloading or lean fuel mixtures, or use the SDB to help coordinate loads on twin-engine installations.
- Easy to read dial
- Bi-metallic sensor
- Two ranges:
- 100 to 500°F (40 to 260°C)
- 200 to 1000°F (100 to 500°C)
- Dials scaled in degrees fahrenheit celsius
- CSA listed explosion-proof model available
|
| |
SDB Series Mechanical Temperature Industrial Gauges |
 |
The 4-1/2” (114 mm) size dial gauge is a mechanical gauges for temperature indication. It is a combination indicating gauge and critical temperature limit switches. High and low temperature limit contacts are visible.
It includes adjustable, electrical contacts that can be used for start and stop, to trip alarms and to shut down equipment.
Panel and wall-mount versions are available as well as latching control relay versions.
Ranges are available from 15° to 250° F (9° to 121° C) through 260° to 450° F (127° to 232° C).
Typical applications include:
- Gas compressors
- Heaters and coolers
- Water pump temperature
- Engine coolant temperature
- Process temperature
Combination indicating gauge and critical temperature limit switches, High and low temperature limit contacts are visible and adjustable, Panel and wall mount versions, and Latching control relay versions available |
Industrial Pressure Gauges |
 |

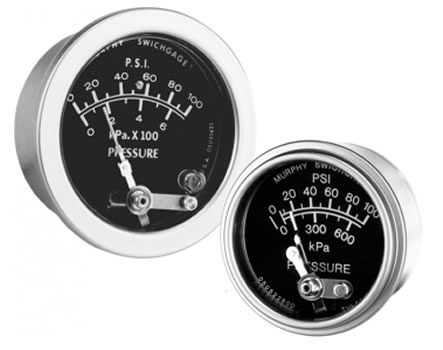

20P / 25P Series Mechanical Pressure Industrial Gauges
The 20P Series (2 inch/51 mm dial) and the 25P Series (2-1/2 inch/64 mm dial) Swichgauge models are diaphragm-actuated, pressure-indicating gauges with built-in electrical switches. These switches are used for tripping alarms and/or shutdown devices.
|
| |

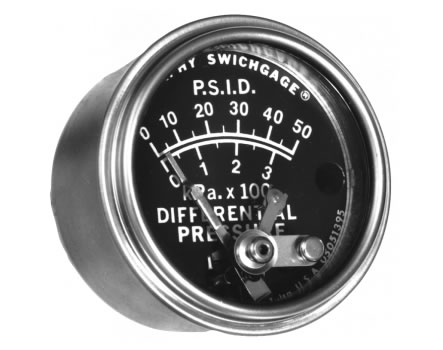

25DP and A25DP Mechanical Pressure Gauges |
 |
The 25DP and A25DP Series (2-1/2 inch/64 mm dial) Swich gauge instruments are diaphragm-actuated, differential pressure-indicating gauges with a built-in electrical switch. This switch is used for tripping alarms and/or shutting down equipment. These gauges are intended to monitor and indicate oil, fuel or water filter restriction and can reduce the risk of dangerously high pressure which may rupture the filter, resulting in contaminants entering the system.
The 25DP series mechanism is enclosed in a steel case coated to resist corrosion. The A25DP series has a polycarbonate case sealed from the environment. Both feature a polycarbonate, break-resistant lens to help protect the instruments.
The gauge pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.
Additional features:
- Constant visual indication of the condition of your filter is shown on the dial.
- Two instruments in one with an accurate indicating gauge and adjustable p.s.i.d. limit switch reduces inventory and installation time.
- Adjustable contact lets you set the monitoring range of the gauge. The contact is tamper proof and can be set only with a 1/16 Allen-head wrench.
- All gauges are made of durable materials allowing them to withstand rugged applications.
- Early filter changes cost you money and increase the risk of contaminants entering the system. A filter restriction Swichgauge instrument will let you know when to change the filter and maintain peak efficiency.
|
| |

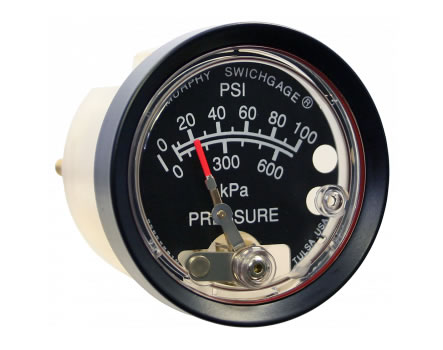

A20P / A25P Series Mechanical Pressure Gauges |
 |
The A20 Series (2 inch/51 mm dial) and the A25 Series (2-1/2 inch/64 mm dial) Swichgauge instruments are diaphragm-actuated, pressure-indicating gauges with built-in electrical switches for tripping alarms and/or shutdown devices.
Ranges are available from 0-30 psi (207 kPa) [2.0 bar] through 0-300 psi (2.1 MPa) [20 bar].
These rugged, instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals. Tese gauges are sealed from the external environment. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
For series A25P, the gauge pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.
Model A20PE has internal snap-acting SPDT switches for three wire control and can be wired to make or to break a circuit.
gauge-only models, without switches (Murphygauge instrument) are also available.
A20/A25 Series applications include: engines/equipment in oil field for lube oil pressure, water pump pressure, hydraulic pressure, air pressure, etc.
Base Models
A25P Series Swichgauge
The gauge pointer makes with an adjustable contact to complete a pilot duty circuit.
A20PE Swichgauge
A20PE (was A20EO). Features internal snap-acting SPDT switches, instead of the single pole/pointer contacts. When the switch closes on falling pressure, it becomes set, as pressure rises the switch resets (refer to wiring diagram).
A20PG Murphygauge instrument
gauge without contact(s) |
| |

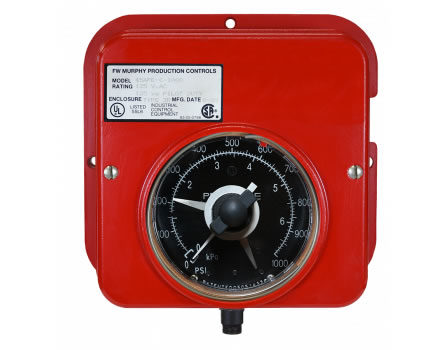

45APE Series Mechanical Pressure Gauges |
 |
- Combination Indicating Gauge with Independent Low and High Snap-Acting Switches
- Field-Adjustable and Highly Visible Low and High Pressure Trip Point Indicators
- Dual-Sector Geared Movement Allows for Full-Scale Indication and Set Point Control
- Panel and Surface Mount Versions Available
- Latching Control Relay Versions Available
The 45APE Series gauge instrument is a mechanical gauge for pressure indication. It includes two adjustable SPDT switches. These snap-acting switches can be used for start and stop, to trip alarms and to shut down equipment. Ranges are available from 30 psi (207 kPa) [2.06 bar] thru 5,000 psi (34.48 MPa) [344.73 bar].
The 45APE Series utilizes a bourdon tube sensing unit with a stainless steel dual-sector geared movement. Each of the sectors drives separate pointers when pressure is applied to the bourdon tube. The indicating pointer (visible pointer) shows actual pressure reading, including below and beyond the low and high trip points. The low and high trip points are adjustable independently on the gauge front lens. The switch operator pointer (behind the dial) is calibrated to follow the indicating pointer. The low and high trip point indicators arrest the switch operator pointer. As pressure decreases or increases through the principal of lost motion, the respective snapswitch is tripped.
The 45APE Series models are widely used in applications requiring pressure indication and Form C low and high pressure switches.
Basic Models
45APE Series gauge instrument
Surface mount (square case) version
45APEF Series gauge instrument
Panel Mount (round Case) Version |
| |
OPL Series Mechanical Pressure Gauges |
 |
- Combination Indicating Gauge and Critical Pressure Limit Switches
- High and Low Pressure Limit Contacts Are Visible and Adjustable
- Panel and Surface Mount Versions
- Indicating-only Gauge Available
- Latching Control Relay Versions Available
The OPL-series pressure gauge instruments are combination pressure indicating gauges with adjustable low and high limit switches. Limit switches can be wired directly to electric pilot circuits to operate alarms, shutdown or the start/stop of engines and electric motors. Surface mount or panel mount enclosure is available for most versions. All versions feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from the front of the gauge. Limit contacts have self-cleaning motion to enhance electrical continuity.
Other versions available (details on next page):
- Gauge only without contacts
- Gauge instrument with built-in latching relay for start-stop operations.
|
| |
PD8100 Series Pressure Sensors and Instruments |
 |
- Used on Controllers, Instruments and Recorders to Dampen Pressure Pulsation
- Eliminate Gauge Pointer Flutter
- Aids in Providing More Accurate Pressure Indication
- Decreases wear on a Gauge’s Geared Movement
The PD8100 Series eliminates pointer flutter on pressure indicating gauge devices which are subject to pulsating pressure from reciprocating pumps or compressors. It also allows a close setting of high and low contact points providing for more accurate pressure indication and control of equipment.
The PD8100 Series decreases wear on geared movements and increases the life of pressure indicating instruments by eliminating excessive gauge strain and unnecessary movement, a necessity which quickly pays for itself by protecting any pressure indicating and control instrument which is subject to pulsation.
PD8100 SERIES IS NOT FOR USE ON OXYGEN OR LIQUID OXYGEN APPLICATIONS.
The PD8100 is quality built with a large diameter valve stem wheel for ease of adjustment and features clearly printed operating instructions.
Machined from 1 3/8-inch (35 mm) hex bar stock, a two degree taper on the valve and stem assure positive dampening.
It’s available in brass, carbon steel, 303 stainless steel or 316 stainless steel to meet pressure and environmental requirements with either 1/2 NPT or 1/4 NPT inlet connections. |
| |
PT167EX Mechanical Pressure Gauges |
 |
The FW Murphy PT167EX is a pressure gauge instrument connected to a threaded pressure diaphragm housing. The gauge is enclosed in an explosion-proof case and is CSA rated for Class I, Division 1, Groups C and D.
The PT167EX is a pressure-indicating gauge with adjustable low and high pressure limit switches. When the gauge pointer touches the low or high limit switches, an electrical circuit is completed which can operate alarms and/or shut down equipment.
The 2 NPT, sealed diaphragm housing is attached directly to the gauge connection. The diaphragm housing is filled with a silicone fluid so that pressure against the diaphragm causes the gauge to respond. The housing seals the sensing element from the medium being measured.
Applications include highly viscous liquids such as crude oil on lead line applications. Other applications have included asphalt, sludge, abrasive materials, etc. |
 |
Black Face - Industrial Mechanical Liquid Filled Pressure Gauge Meter Tester |
 |
MTC Series 52mm Black Face - Industrial Mechanical Liquid Filled Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Liquid Filled Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~15 PSI |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
Black Color / White Color |
| Sending Unit: |
Mechanical |
|
White Face - Industrial Mechanical Liquid Filled Pressure Gauge Meter Tester |
 |
MTC Series 52mm White Face - Industrial Mechanical Liquid Filled Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Liquid Filled Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~15 PSI |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
Black Color / White Color |
| Sending Unit: |
Mechanical |
|
Industrial Mechanical Liquid Filled Dual Scale Pressure Gauge Meter Tester |
 |
MTC Series 52mm - Industrial Mechanical Liquid Filled Dual Scale Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Liquid Filled Dual Scale Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~100 PSI / 0~7 BAR |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
White Color |
| Sending Unit: |
Mechanical |
|
Black Face - Industrial Mechanical Pressure Gauge Meter Tester |
 |
MTC Series 52mm Black Face - Industrial Mechanical Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~15 PSI |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
Black Color / White Color |
| Sending Unit: |
Mechanical |
|
White Face - Industrial Mechanical Pressure Gauge Meter Tester |
 |
MTC Series 52mm White Face - Industrial Mechanical Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~15 PSI |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
Black Color / White Color |
| Sending Unit: |
Mechanical |
|
Black Face - Industrial Mechanical Dual Scale Pressure Gauge Meter Tester |
 |
MTC Series 52mm Black Face - Industrial Mechanical Dual Scale Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Dual Scale Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~60 PSI / 0~4Kg / cm² |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
White Color |
| Sending Unit: |
Mechanical |
|
White Face - Industrial Mechanical Dual Scale Pressure Gauge Meter Tester |
 |
MTC Series 52mm White Face - Industrial Mechanical Dual Scale Pressure Gauge Meter Tester.
– Bulb Backlight
– Clear Lens
| Series: |
MTC Series |
| Product Type: |
Dual Scale Pressure Gauge |
| Size: |
30mm |
| Backlight: |
Bulb Light |
| Range: |
0~60 PSI / 0~4Kg / cm² |
| Lens: |
Clear Lens |
| Rim: |
Chrome Rim |
| Face: |
White Color |
| Sending Unit: |
Mechanical |
|
Related VDO Gauges Family
|
|
|
| |
|
