Ammeter Gauges (Amp Meter)

Ammeter VDO Gauges (AMP Meter) - INTERNAL SHUNT

Suitable for most engines. Monitors Charge and battery condition. Voltage independent - suitable for 12 & 24V Ammeters with internal shunt are easily identified by the heavy duty threaded terminals. Heavy duty wire must be used for wiring. Illumination globe holder included.
For 24V application use globe 999-065-002
For 12V application use globe 999-065-001

Ammeter Gauges (Amp Meter) - Semi Truck (Electrical)

Semi Truck Electrical Cockpit Black Ammeter Gauges (Amp Meter) (60 Amp Gauge)

The electrical ammeter gauge allows you to easily read your amp level, while also adding a high quality finish to your dash. VDO gauges are known for their functionality, sturdiness, and style. Our vdo gauges are available in a black bezel, they are also covered by a 1 year warranty against defects so every trucker can feel confident their purchase is backed by a guarantee.

• Electrical Ammeter Gauges (Amp Meter)
• Contains a built in internal shunt, eliminating the need for an external shunt or additional wiring
• Cockpit Black features crisp black dials with matching bezels
• Features through dial lighting which allows details on the gauge to illuminate
• Included light diffusers allow the dial illumination colour to be changed to red or green
• Designed with high contrast clear white graphics & red pointers for an easy reading
• VDO patented movements provide smooth & accurate performance & long life dependability
• Standard 0.250" spade connectors simplify wiring
• Sold Individually

Fuel Gauges

VDO Cockpit Fuel Level Gauges

VDO COCKPIT FUEL LEVEL GAUGE DESCRIPTION:

A 52mm diameter fuel level gauge from VDO's vision range, featuring trioptic technology to give superb night time illumination and pointer lighting. As standard the illumination is white but can be changed to red or green by fitting one of the supplied diffusers. The black dial face displays the scale 0 - 1/2 - 1/1. The fuel level gauge is available to suit either float arm type sender units or dip tube types, both of which are supplied separately.

Suitable for use with petrol and diesel fuel. Illumination 12V and 24V included.
For tank units with 10-180 ohms resistance.
Without ISO symbol.

VDO Cockpit Fuel Level Gauges

Key Features - VDO Cockpit Fuel Level Gauges:

Additional Information

Pressure Gauges

VDO Cockpit Black 5 bar Oil Pressure Gauges

VDO Cockpit Black 5 bar Oil Pressure Gauge, Use with VDO Sender, 12V & 24V

PRESSURE GAUGE - Electric Suitable for all vehicles and machines. Illumination 12V or 24V included. Note: Not recommended for petrol or water.

VDO Cockpit Engine Oil Pressure Gauges

VDO Cockpit Engine Oil Pressure Gauges - 10Bar Black 52mm

Suitable for most vehicles and machines. Can be used on most non-aggressive gases and liquids. Supplied with nut and cone for 3/16" PVC tubing.

Globe Holder not included. For 24V application use:

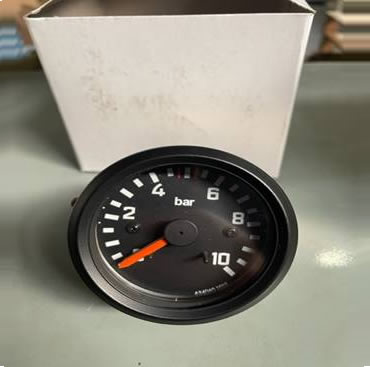

Dual Air Pressure Gauges 10 bar, 60 mm.

Dual Air Pressure Gauges 10 bar, 60 mm

Dual Air Pressure Gauges 10 bar, 60 mm • 0-5V Default input. • RGB LED illumination (default illumination set to white) • Water resistant front & rear • Includes required harness

PRESSURE GAUGES, Transmission Oil Pressure

PRESSURE GAUGES, Transmission Oil Pressure

VDO Cockpit Black 10 bar Oil Pressure gauges, use with VDO sender, 12V & 24V

Dual Pressure Gauges

DUAL AIR PRESSURE GAUGE 150PSI

Dual Air Pressure Gauges

DUAL AIR PRESSURE GAUGE 150PSI

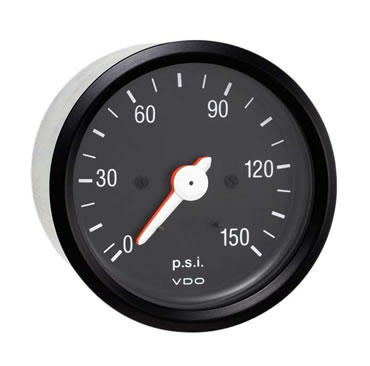

Dual Air Pressure Gauge 150PSI

151-002 - VDO Pressure Gauge 150PSI "DUAL AIR" Cockpit International - Pressure Gauges - Cockpit International - Automotive Gauges - VDO

Scale: 0 - 150 PSI
Input Type: Mechanical Dual Air
Voltage: 12V
Connection: 1⁄8" - 27 NPT
Mounting Hardware: U-Bracket
Diameter: 3 1⁄8" (80mm)
Illuminated: Yes
Bezel: Black (painted brass)
Water Protection: IP 64
Style: Cockpit International

DUAL AIR PRESSURE GAUGE 150PSI

Dual Air Pressure Gauges

DUAL AIR PRESSURE GAUGE 150PSI

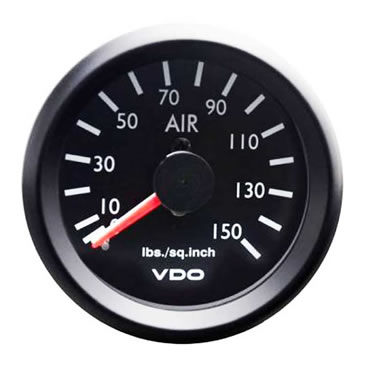

150PSI Dual Air Pressure Gauge

151-910 - VDO Cockpit International 150PSI Dual Air Pressure Gauge - Pressure Gauges - Cockpit International - Automotive Gauges - VDO

Scale: 0 - 150 PSI
Type: Mechanical
Voltage: 12V
Connection: 1⁄8" - 27 NPT
Diameter: 2 1⁄16" (52mm)
Included: U-Bracket (Mounting Hardware)
Series: Cockpit International

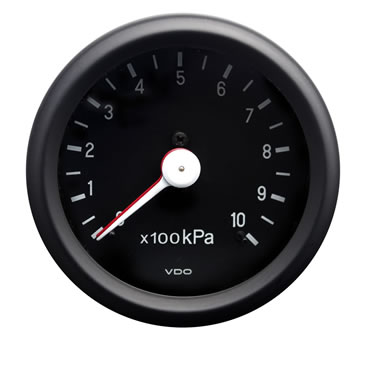

VDO DUAL PRESSURE GAUGE 0-1000KPA

Dual Pressure Gauges

VDO DUAL PRESSURE GAUGE 0-1000KPA

VDO DUAL PRESSURE GAUGE 0-1000KPA

Suitable for most vehicles and machines. Two independent measuring systems indicated separate pressures on one scale. Supplied with nut and cone for 3/16” PVC tubing

Steel body
Dual Mechanical
Kit comes with: x2 bulb
mounting bracket & gauge
Size: 60mm
Voltage: 12V / 24V
Range: 0-1000 kPa

Hourmeter Gauges

HOUR METER - NO MINUTE HAND

HOUR METER DESCRIPTION: No Minute Hand ad Black Bezel Gauge

52mm illuminated 24v VDO hourmeter

Suitable for all vehicles and machines

12v globe included

Range: 0 - 99999.9hrs

Hourmeter Gauges - 0-99999.9 Hours

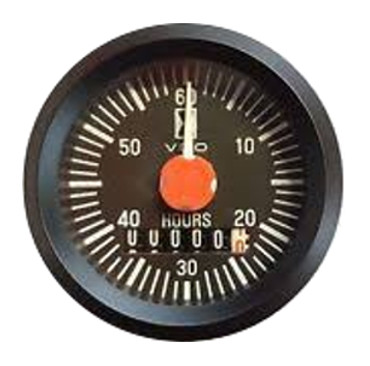

Hourmeter, 100K Hours, Non Illuminated, 12V, with minute hand

Cockpit International Hourmeter, 100K Hours, Non Illuminated, 12V, with minute hand

Suitable for all vehicles and machines Available with 360° minute hand sweep or as counters only

HOUR METER - VIBRATION TYPE

For control of motors and engines as well as for recording the operating time of machinery not connected to an electric power supply but generating vibrations in service.

Vacuum Gauges - Mechanical

Suitable for most vehicles.
Supplied with nuts and cones for 3/16" tubing.
Illumination 12V included.

VDO 3 bar Mechanical Boost Gauges

VDO Black 3 bar Mechanical Boost Gauges, 12V

Suitable for all vehicles. Supplied with nut and cone for 3/16" PVC tubing. Illumination 12V included.

The VDO Quartz Clock offers accurate timing to within ±1 second per day. The crystallographic properties of quartz ensure that the electric current is precisely regulated for accurate timing. The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht cockpit.

VDO FUEL GAUGES

Fuel Gauges

Suitable for use with petrol and diesel fuel. Illumination 12V and 24V included.

FUEL GAUGES 10-180 ohms

VDO SingleViu Ammeter gauges 150A (AMP Meters)

SingleViu Ammeter Gauges (150A) (AMP Meters)

VDO Ammeter Gauges(AMP Meters), SingleViu, 2 1/16" (52mm), 150A

• 60mV shunt required (VDO 391-303). Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3833060030 (preset to mV input for use with 391-303 shunt)

NOTE: If you are using this SingleViu gauge to replace a CANCockpit instrument, call to discuss your options.

VDO SingleViu Ammeter gauges 100A (AMP Meters)

SingleViu Ammeter Gauges (150A (AMP Meters)

VDO Ammeter, 2 1/16" (52mm), 100A, Style: SingleViu

• 60mV shunt required (VDO 391-303)
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3833070030 (preset to mV input for use with 391-303 shunt)

VDO SingleViu Ammeter gauges 60A (AMP Meters)

SingleViu Ammeter Gauges (150A) (AMP Meters)

VDO Ammeter Gauge, SingleViu, 2 1/16" (52mm), 60A

• 60mV shunt required (VDO 391-301)
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3833080030 (preset to mV input for use with 391-301 shunt)

VDO SingleViu Ammeter gauges 30A (AMP Meters)

SingleViu Ammeter Gauges (150A) (VDO Gauges)

VDO Ammeter, SingleViu, 2 1/16" (52mm), 30A

• 60mV shunt required (VDO 391-300)
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3833090030 (preset to mV input for use with 391-300 shunt)

VDO SingleViu DEF Level Gauges

VDO SingleViu DEF Level gauge (VDO Gauges)

VDO DEF Level gauges, SingleViu, 2 1/16" (52mm), 12V or 24V systems

• 240-33Ω default input. Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832750030 (preset to analog for use with traditional senders)

VDO SingleViu ConcDEF Gauges

VDO SingleViu ConcDEF Gauges (VDO Gauges)

VDO, SingleViu ConcDEF 52 100%; SingleViu 2 1/16in (52mm) DEF concentration gauge. Accepts J1939 input. Features RGB illumination and dual fog free lens. Uses standard Molex connector (part number 2910000484200, sold separately). Works on both 12V or 24V systems.

SingleViu DEF Level VDO Gauges

VDO SingleViu DEF Level Gauge (VDO Gauges)

VDO DEF Level Gauge, SingleViu, 2 1/16" (52mm)

• 10-180Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833550030 (preset to analog for use with traditional senders)

VDO SingleViu Fuel Level Gauge 180 Ohm

VDO SingleViu Fuel Level Gauge 180 Ohm (VDO Gauges)

VDO Fuel Level Gauge, SingleViu, 2 1/16" (52mm), E-F scale

• 10-180Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833120030 (preset to analog for use with traditional senders)

VDO SingleViu Oil Pressure Gauge 10bar

VDO, SingleViu Oil Pressure Gauges, 2 1/16" (52mm), 10bar, 12V or 24V systems

VDO, SingleViu Oil Pressure Gauge, 2 1/16" (52mm), 10bar, 12V or 24V systems

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832690030 (preset to voltage input)

VDO SingleViu Oil Pressure Gauges 150PSI

VDO, SingleViu Oil Pressure Gauges, 2 1/16" (52mm), 150psi, 12V or 24V systems

VDO, SingleViu Oil Pressure Gauge, 2 1/16" (52mm), 150psi, 12V or 24V systems

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832700030 (preset to voltage input)

VDO SingleViu Brake Pressure Gauges

VDO SingleViu Brake Pressure Gauges 16bar (VDO Gauges)

VDO Brake Pressure gauge, SingleViu, 2 1/16" (52mm), 16bar

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• OEM packaging. Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3832710030 (preset to voltage input)

VDO SingleViu Brake Pressure Gauges 30bar

VDO SingleViu Brake Pressure Gauges 30bar (VDO Gauges)

VDO Brake Pressure gauge, SingleViu, 2 1/16" (52mm), 30bar

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• OEM packaging. Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832720030 (preset to voltage input)

VDO SingleViu Brake Pressure Gauges 250PSI

VDO SingleViu Brake Pressure Gauges 250PSI (VDO Gauges)

VDO Brake Pressure gauge, SingleViu, 2 1/16" (52mm), 250psi, 12V or 24V systems

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• OEM packaging. Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832730030 (preset to voltage input)

VDO SingleViu Gear Oil Pressure Gauges 500PSI

VDO SingleViu Gear Oil Pressure Gauges 500PSI (VDO Gauges)

VDO Gear Pressure gauges, SingleViu, 2 1/16" (52mm), 500psi , 12V or 24V systems

• Selectable 0-4.5V or CAN J1939 input
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• OEM packaging. Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3832740030 (preset to voltage input)

VDO SingleViu Oil Pressure Gauges 5bar

VDO SingleViu Oil Pressure Gauges 5bar (VDO Gauges)

VDO Oil Pressure Gauge, SingleViu, 2 1/16" (52mm), 5bar

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833160030 (preset to analog for use with traditional senders)

VDO SingleViu Oil Pressure Gauges 10bar

VDO SingleViu Oil Pressure Gauges 10bar (VDO Gauges)

VDO Oil Pressure Gauge, SingleViu, 2 1/16" (52mm), 10bar

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833170030 (preset to analog for use with traditional senders)

VDO SingleViu Oil Pressure Gauges 80PSI

VDO SingleViu Oil Pressure Gauges 80PSI (VDO Gauges)

VDO Oil Pressure Gauge, SingleViu, 2 1/16" (52mm), 80psi

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833190030 (preset to analog for use with traditional senders)

VDO SingleViu Air Pressure Gauges 150PSI

VDO SingleViu Air Pressure Gauges 150PSI (VDO Gauges)

VDO Air Pressure Gauge, SingleViu, 2 1/16" (52mm), 150psi

• Preset to analog for use with traditional senders
• Harness included
• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available without harness: A2C3833440001

VDO SingleViu Brake Pressure Gauges 10bar

VDO SingleViu Brake Pressure Gauges 10bar (VDO Gauges)

VDO Brake Pressure Gauge, SingleViu, 2 1/16" (52mm), 10bar

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833450030 (preset to analog for use with traditional senders)

VDO SingleViu Gear Oil Pressure Gauges 25bar

VDO SingleViu Gear Oil Pressure Gauges 25bar (VDO Gauges)

VDO Gear Oil Pressure Gauge, SingleViu, 2 1/16" (52mm), 25bar

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833460030 (preset to analog for use with traditional senders)

VDO SingleViu Brake Pressure Gauges 150PSI

VDO SingleViu Brake Pressure Gauges 150PSI (VDO Gauges)

VDO Brake Pressure Gauge, SingleViu, 2 1/16" (52mm), 150psi

• Preset to analog for use with traditional senders
• Harness included
• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available without harness: A2C3833480001

VDO SingleViu Turbo Pressure Gauges 2bar

VDO SingleViu Turbo Pressure Gauges 2bar (VDO Gauges)

VDO Turbo Pressure Gauge, SingleViu, 2 1/16" (52mm), 2bar

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833490030 (preset to analog for use with traditional senders)

VDO SingleViu Gear Oil Pressure Gauges 400PSI

VDO SingleViu Gear Oil Pressure Gauges 400PSI (VDO Gauges)

VDO Gear Oil Pressure Gauge, SingleViu, 2 1/16" (52mm), 400psi

• 10-184Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833500030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 300kmh Gauges

VDO SingleViu Speedometer 300kmh Gauges (VDO Gauges)

VDO Speedometer Gauge, SingleViu, 300km/h, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harness: A2C3832830030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 200kmh Gauges

VDO SingleViu Speedometer 200kmh Gauges (VDO Gauges)

VDO Speedometer, SingleViu, 300km/h, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832840030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 140MPH Gauges

VDO SingleViu Speedometer 140MPH Gauges (VDO Gauges)

VDO Speedometer Gauges, SingleViu, 140mph, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832850030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 120kmh Gauges

VDO SingleViu Speedometer 120kmh Gauges (VDO Gauges)

VDO Speedometer Gauges, SingleViu, 120km/h, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832860030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 90MPH Gauges

VDO SingleViu Speedometer 90MPH Gauges (VDO Gauges)

VDO Speedometer, SingleViu, 90mph, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832870030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 30MPH Gauges

VDO SingleViu Speedometer 30MPH Gauges (VDO Gauges)

VDO Speedometer, SingleViu, 30mph, 3 3/8" (85-80mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• Stepped mounting ring allows fitment in 3 3/8" (85mm) and 3 1/8" (80mm) dash opening
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832870030 (preset to analog for use with traditional senders)

VDO SingleViu Speedometer 60kmh Gauges

VDO SingleViu Speedometer 60kmh Gauges (VDO Gauges)

VDO Speedometer, SingleViu, 60km/h, 3 3/8" (85-80mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• Stepped mounting ring allows fitment in 3 3/8" (85mm) and 3 1/8" (80mm) dash opening
• LCD displays odometer, tripmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• RGB LED illumination (default illumination set to white)
• Easy auto calibration programming
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832890030 (preset to analog for use with traditional senders)

VDO SingleViu Tachometer 5000RPM Gauges

VDO SingleViu Tachometer 5000RPM Gauges (VDO Gauges)

VDO SingleViu Tachometer, 4" (100mm), 5000RPM, selectable Analog or CAN J1939 input

• LCD displays hourmeter, voltage and clock
• RGB illumination
• 12V or 24V
• Molex connectors (part numbers 2910000484200 and 2910000484300, sold separately)

VDO SingleViu Tachometer 4000RPM Gauges

VDO SingleViu Tachometer 4000RPM Gauges (VDO Gauges)

VDO, SingleViu Tachometer, 4" (100mm) 4000RPM, Accepts J1939 or frequency inputs. Features RGB illumination and dual fog free lens. Uses standard Molex connectors (part numbers 2910000484200 and 2910000484300, sold separately). Works on both 12V or 24V systems.

VDO SingleViu Tachometer 3000RPM Gauges

VDO SingleViu Tachometer 3000RPM Gauges (VDO Gauges)

VDO Tachometer, SingleViu, 3,000 RPM, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays hourmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Programmable max RPM warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harness: A2C3832810030 (preset to analog for use with traditional senders)

VDO SingleViu Tachometer 2500RPM Gauges

VDO SingleViu Tachometer 2500RPM Gauges (VDO Gauges)

VDO Tachometer, SingleViu, 2500 RPM, 4" (100mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• LCD displays hourmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Programmable max RPM warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832820030 (preset to analog for use with traditional senders)

VDO SingleViu Tachometer 2000RPM Gauges

VDO SingleViu Tachometer 2000RPM Gauges (VDO Gauges)

VDO Tachometer, SingleViu, 2000 RPM, 3 1/8" (80mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• Stepped mounting ring allows fitment in 3 3/8" (85mm) and 3 1/8" (80mm) dash opening
• LCD displays hourmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Programmable max RPM warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3832960030 (preset to analog for use with traditional senders)

VDO SingleViu Tachometer 6000RPM Gauges

VDO SingleViu Tachometer 6000RPM Gauges (VDO Gauges)

VDO Tachometer, SingleViu, 6000 RPM, 3 1/8" (80mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• Stepped mounting ring allows fitment in 3 3/8" (85mm) and 3 1/8" (80mm) dash opening
• LCD displays hourmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Programmable max RPM warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3833010030 (preset to analog for use with traditional senders)

VDO SingleViu Tachometer 8000RPM Gauges

VDO SingleViu Tachometer 8000RPM Gauges (VDO Gauges)

VDO Tachometer, SingleViu, 8000 RPM, 3 1/8" (80mm), 12-24V systems

• Selectable Analog or CAN J1939 input
• Stepped mounting ring allows fitment in 3 3/8" (85mm) and 3 1/8" (80mm) dash opening
• LCD displays hourmeter, voltage and clock (plus J1939 fault codes when in CAN mode)
• Connection: 1x Molex MX 150 8 Pin and 1x Molex MX150 12 Pin
• RGB LED illumination (default illumination set to white)
• Programmable max RPM warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connectors (part numbers 2910000484200 and 2910000484300, sold separately)
• Also available with harnesses: A2C3833020030 (preset to analog for use with traditional senders)

VDO SingleViu Pyrometer 1000C Gauges

VDO Pyrometer Gauges (Exhaust Gas Temperature Gauge), SingleViu, 2 1/16" (52mm), 1000°C

VDO Pyrometer Gauges (Exhaust Gas Temperature Gauge), SingleViu, 2 1/16" (52mm), 1000°C

• 4.1-37.75mV default input. Switchable to CAN J1939
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available with harness: A2C3833050030 (preset to mV input)

VDO SingleViu Water Temperature Gauges 120C

VDO SingleViu Water Temperature Gauges 120C (VDO Gauges)

VDO Water Temperature Gauge, SingleViu, 2 1/16" (52mm), 120°C

• 287-22Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833320030 (preset to analog for use with traditional senders)

VDO SingleViu Water Temperature Gauges 120C

VDO SingleViu Water Temperature Gauges 120C (VDO Gauges)

VDO Water Temperature Gauge, SingleViu, 2 1/16" (52mm), 120°C

• 287-22Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833330030 (preset to analog for use with traditional senders)

VDO SingleViu Water Temperature Gauges 250F

VDO SingleViu Water Temperature Gauges 250F (VDO Gauges)

VDO Water Temperature Gauges, SingleViu, 2 1/16" (52mm), 250°F

• 450-30Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833340030 (preset to analog for use with traditional senders)

VDO SingleViu Oil Temperature Gauges 150C

VDO SingleViu Oil Temperature Gauges 150C (VDO Gauges)

VDO Oil Temperature Gauge, SingleViu, 2 1/16" (52mm), 150°C

• 287-22Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833380030 (preset to analog for use with traditional senders)

VDO SingleViu Oil Temperature Gauges 150C

VDO SingleViu Oil Temperature Gauges 150C (VDO Gauges)

VDO Oil Temperature Gauge, SingleViu, 2 1/16" (52mm), 150°C

• 287-22Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833390030 (preset to analog for use with traditional senders)

VDO SingleViu Hydraulic Oil Temperature Gauges 120C

VDO SingleViu Hydraulic Oil Temperature Gauges 120C (VDO Gauges)

VDO Hydraulic Oil Temperature Gauge, SingleViu, 2 1/16" (52mm), 120°C

• 287-22Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833510030 (preset to analog for use with traditional senders)

VDO SingleViu Cylinder Temperature Gauges 200C

VDO SingleViu Cylinder Temperature Gauges 200C (VDO Gauges)

VDO Cylinder Temperature Gauge, SingleViu, 2 1/16" (52mm), 200°C

• 482-14Ω default input
• Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Works on both 12V or 24V systems
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3833520030 (preset to analog for use with traditional senders)

VDO SingleViu Voltmeter 16V Gauges

VDO SingleViu Voltmeter 16V Gauges (VDO Gauges)

VDO Voltmeter Gauge, 2 1/16" (52mm), 12V systems, Style: SingleViu

• Max Range Outer Scale: 16V
• Connection: 1x Molex MX 150 8 Pin
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832770030

VDO SingleViu Voltmeter 32V Gauges

VDO SingleViu Voltmeter 32V Gauges (VDO Gauges)

VDO Voltmeter Gauge, SingleViu, 2 1/16" (52mm), 24V systems

• Max Range Outer Scale: 32V
• Connection: 1x Molex MX 150 8 Pin
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear
• Requires standard Molex MX 150 waterproof connector (part number 2910000484200, sold separately)
• Also available with harness: A2C3832780030

DOWNLOAD VDO INSTRUMENTATION & ENGINE MONITORING SYSTEMS CATALOGUE

Related VDO Gauges Family
